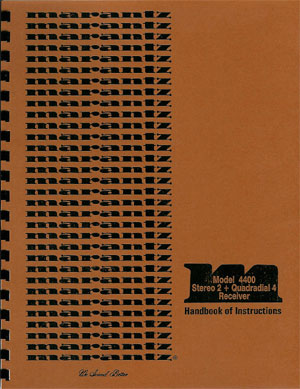

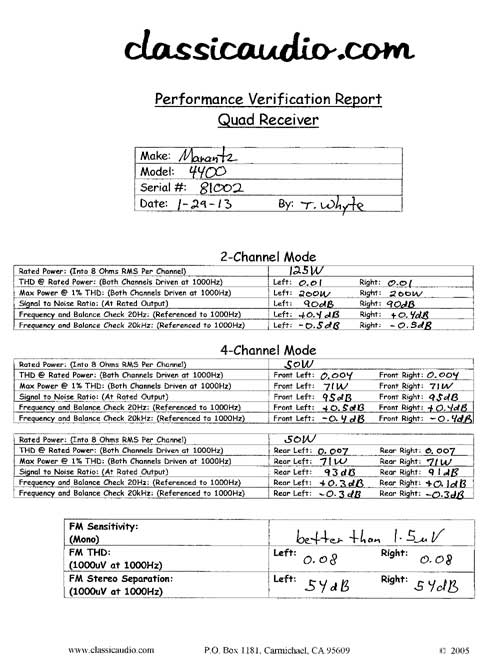

Marantz model 4400 quad receiver in excellent condition with optional wood cabinet. Rated at 125 watts RMS per channel in 2-channel mode and 50 watts RMS per channel in 4-channel mode into 8 ohms. This unit has been serviced and fully tested. Our original Performance Verification Report, and a copy of the Handbook of Instructions included.

Also Included With This Item:

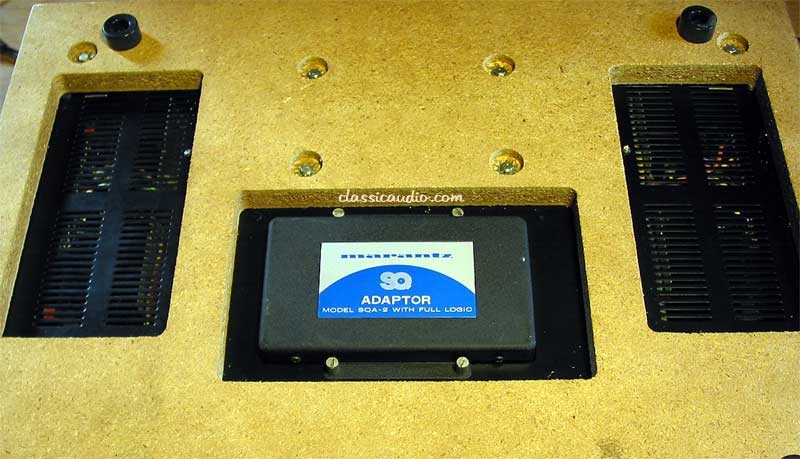

Marantz SQA-2B SQ Adapter with matching serial number box and original instructions.

(Tech's Note: Marantz is famous for under stating their power ratings. The 4400 is the most spectacular example of this. Following the restoration we clocked this 4400 at 200 watts per channel in 2 channel mode and over 70 watts per channel in 4 channel mode. Wow!)

Born On Date: Halloween 1975! (10-31-1975)

Controls:

Dolby Play Cal Left
Dolby Play Cal Rightclassicaudio.com
Dolby Record Cal Left
Dolby Record Cal Right
Dolby: FM Dolby, Play, Off, Record 1, Record 2.
Selector: AM, FM, Phono, Aux/CD-4, Tape 1, Tape 2.
Monitor: Tape 1, Source, Tape 2classicaudio.com
Mode: Mono, 2-CH, Discrete, Vari-Matrix, SQ-Decoder
Dimension: Vari-Matrix Mode Only
Bass: Independent Front, Rear
Mid: Independent Front, Rearclassicaudio.com
Treble: Independent Front, Rear
Volume
Balance: Front, Left Right (Slider)
Balance: Front, Rear (Slider)
Balance: Rear, Left Right (Slider)classicaudio.com

Switches:

Meter: Dolby Level L/R
400 Hz Toneclassicaudio.com
Scope Display On
Scope Display Audio
Scope Display Tuning
Scope Display Multipath
Loudnessclassicaudio.com
FM Muting
Low Filter
Hi Filter
Spkr Main
Spkr Remote
Powerclassicaudio.com

Jacks:

Headphones Front
Headphones Rear

Indicators:

Dolby Level Meter
Oscilloscopeclassicaudio.com
STEREO
AM
FM
PHONOclassicaudio.com
CD-4
TAPE 1
TAPE 2
DOLBYclassicaudio.com

Rear Panel:

AC Outlet Unswitchedclassicaudio.com
AC Outlet Switched
FM Quadradial Output
FM Muting Level
Main In Left, Right, Front, Rear
Pre Out Left, Right, Front, Rear
Tape Monitor 2 Out (L, R, F, R)classicaudio.com
Tape Monitor 2 In (L, R, F, R)
Tape Monitor 1 Out (L, R, F, R)
Tape Monitor 1 In (L, R, F, R)
Phono Input (L, R)
CD-4/Aux Input (L, R)
CD-4/Aux Input Rear (L, R)
Dolby FM Level (L, R)
Scope Centering Vert.
Scope Centering Horiz.
Scope Focus
Scope Brightness
Remote Control
Power Mode: 125W X2/50W X4classicaudio.comclassicaudio.com

Shipping Weight 75 lbs.

$3500.00



ClassicAudio.com
Phone 916-488-6016 or
Toll Free: 1-888-892-8106 enter "1027"
Send email click here.



Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We PRO PACK!

This item includes our 60 day / 2 year limited warranty!

Read what our customers say about us!

---



---

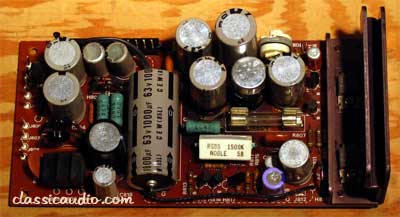

Marantz 4400 Regulated Power Supply Refurb:

BEFORE

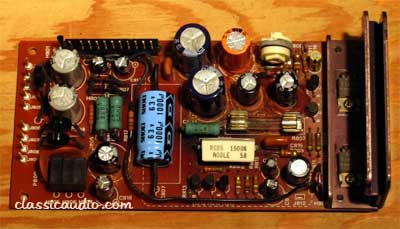

AFTER

Also Refurbished:

Left Front Amp Section
Right Front Amp Section
Left Rear Amp Section
Right Rear Amp Section
Oscilloscope Amp Section
Dolby Section

---
