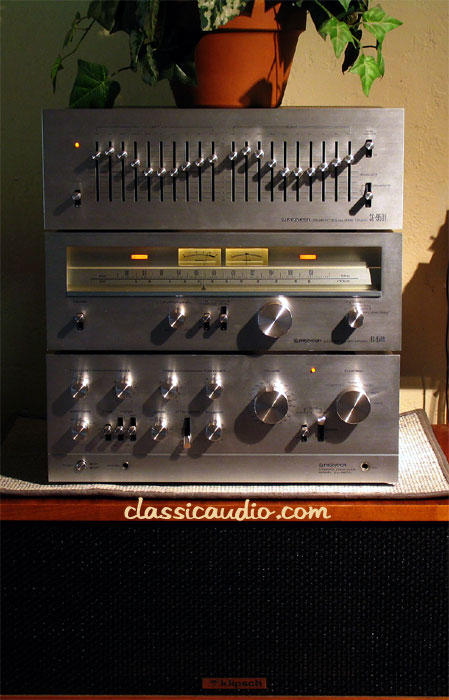

Pioneer SG-9500, TX-9500 and SA-9500 For Sale

This item has been SOLD! For more ads, click HERE.

Pioneer model SG-9500 graphic equalizer in very good condition. It has been serviced and fully tested. Includes a copy of the owner's manual.

AND

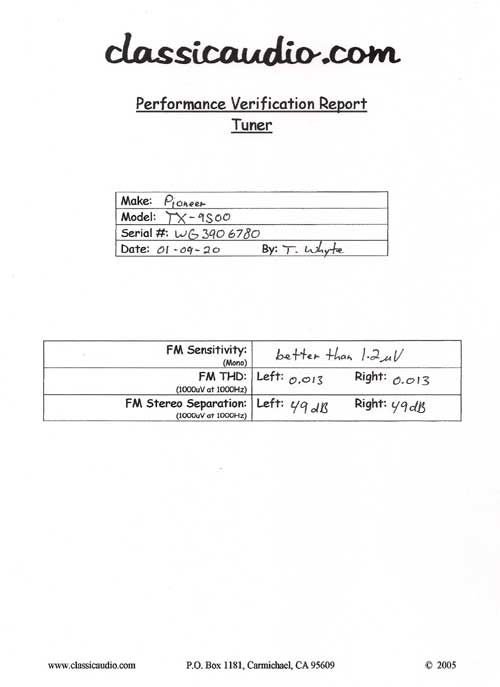

Pioneer model TX-9500 AM/FM Stereo tuner in excellent condition. The TX-9500 is the top of the line and features superior build quality with outstanding performance. This unit has been serviced and fully tested. Our original Performance Verification Report and a copy of the owner's manual included.

AND

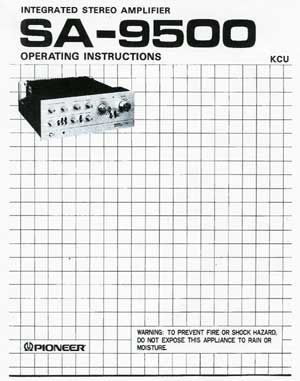

Pioneer model SA-9500 integrated amplifier in excellent condition. Rated at 80 watts RMS into 8 ohms and 100 watts RMS into 4 ohms. This unit has been serviced and fully tested. Our original Performance Verification Report and a copy of the owner's manual included.

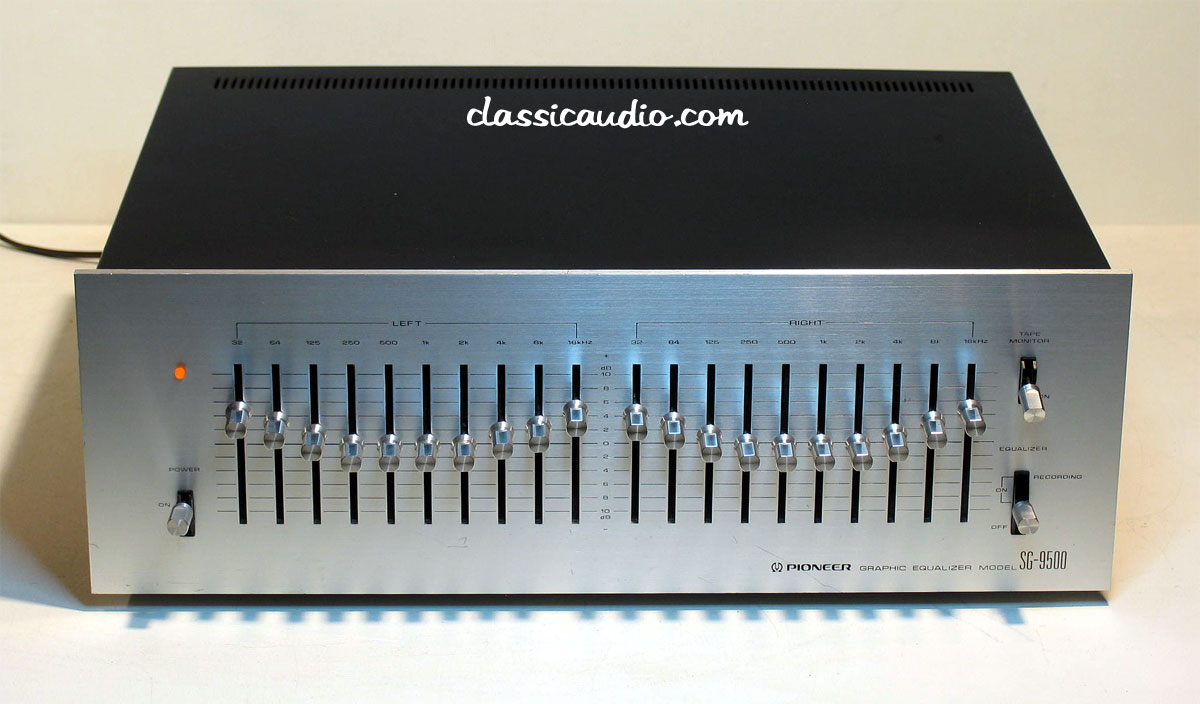

SG-9500 From Pioneer:

The complex control functions of the SG-9500 are not limited merely to the equalization of a simple program source, but can also provide precise tone corrections for the playback equipment (turntable and tape deck), speakers and listening room.

Musical program sources can also be modified to improve the sound of technically inferior recordings or to tailor them to suit your personal taste.

The SG-9500 is a highly versatile audio component.

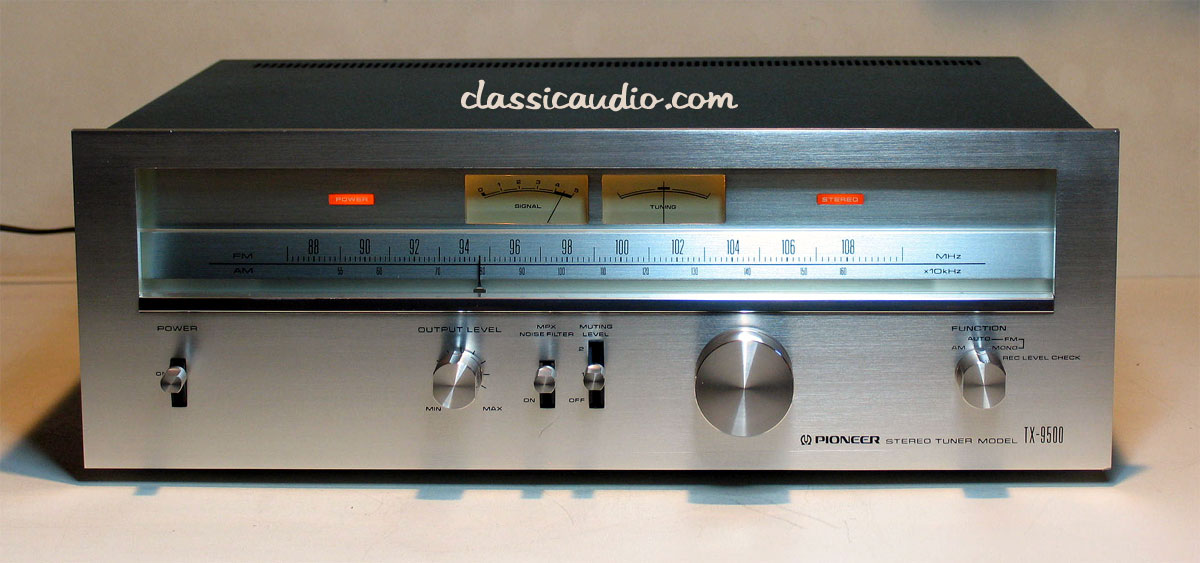

TX-9500 From Pioneer:

Inside it's one of the most circuit-packed AM/FM tuners Pioneer have ever built. And outside it's one of the cleanest and most simple to use. The Pioneer TX-9500 has a new streamlined look, logically-arranged switches and controls, and a scientifically-designed tuning system that makes it all look so easy. But it's what's inside that counts: dual-gate MOS FETs and a 5-gang variable capacitor boost FM front end sensitivity to a superb 1.5uV (IHF). The FM IF has 7 ICs with differential amps, 4 ceramic filters (with 2 elements each) and a wide-band linear detector to pinpoint selectivity at 85dB or better and beef up the capture ratio to 1.0dB (IHF). Even in stereo the S/N is a super high 75dB, with total harmonic distortion of 0.2% at 1KHz.Thanks to the PLL MPX (phase lock loop multiplex) demodulator, stereo separation stretches to a wide 35dB over the 50 to 10,000Hz range. Stability? Even in signal-weak or signal-strong areas your station comes in clean and fresh. Planning to record off the air? Hit the switch for the built-in 440Hz test signal generator and check the output level against your deck's VUs for optimum adjustment before the music begins.

SA-9500 From Pioneer:

The SA-9500 features an ample margin power amplifier, versatile tone control section, precise RIAA equalisation, a reliable electronic protection circuit, accurate volume control adjustment range, phono jacks with impedance selector and level control and a tape switch for easy tape duplication.

The amplifier also incorporates pre-in and power out jacks.

A single SA-9500 can thus be used to set up various kinds of audio systems.

Sold Only as a Set.

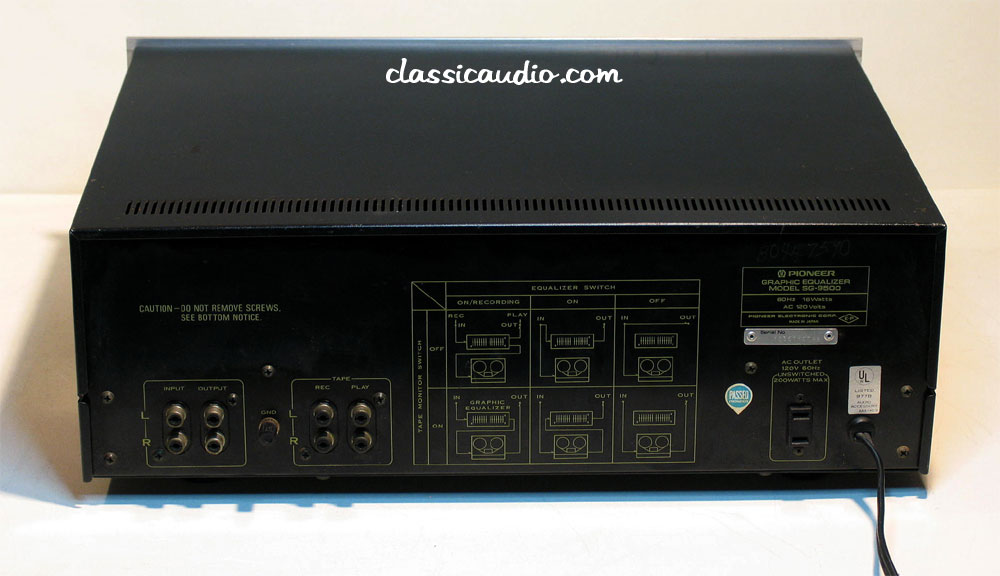

SG-9500

Replacement Tape Monitor Loop
10 Bands per Channel
+/- 10dB Per Band
Bypass Mode
EQ Tape Record Mode

Shipping Weight 20 lbs.

TX-9500

Controls:

Output Levelclassicaudio.com
Function: AM, FM Auto, FM Mono, Rec Level Check

Switches:

Powerclassicaudio.com
MPX Noise Filter
Muting Level: Off, 1, 2

Indicators:

POWERclassicaudio.com
STEREO

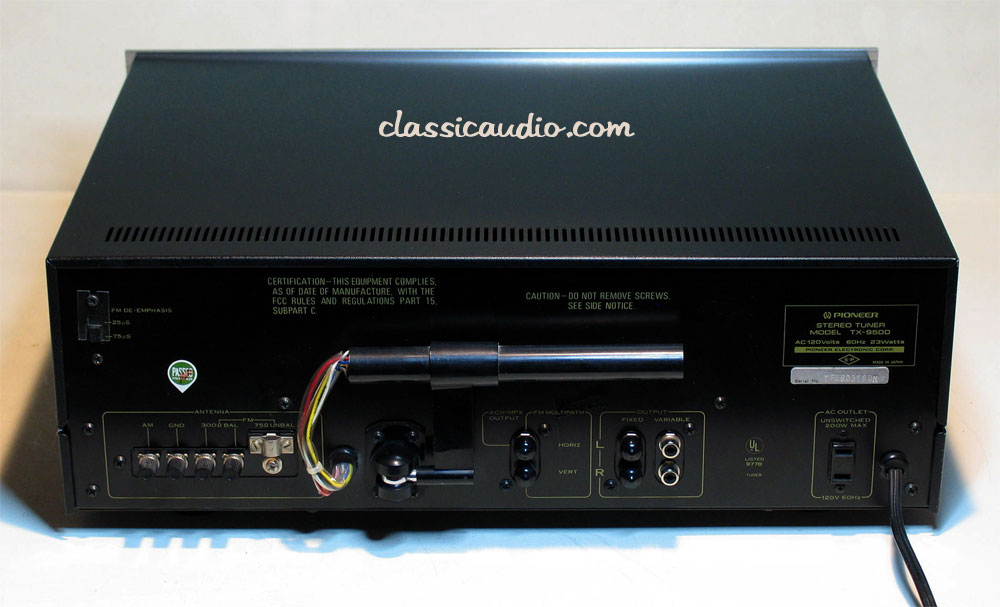

Rear Panel:

AC Outlet Unswitched
Output Fixed (L, R)classicaudio.com
Output Variable (L, R)
Scope (H, V)
FM De-Emphasis: 25uS, 75uS
Antenna Inputs: FM 75 ohm, FM 300 ohm, AM
AM Ferrite Bar Antennaclassicaudio.com

Shipping Weight 25 lbs.

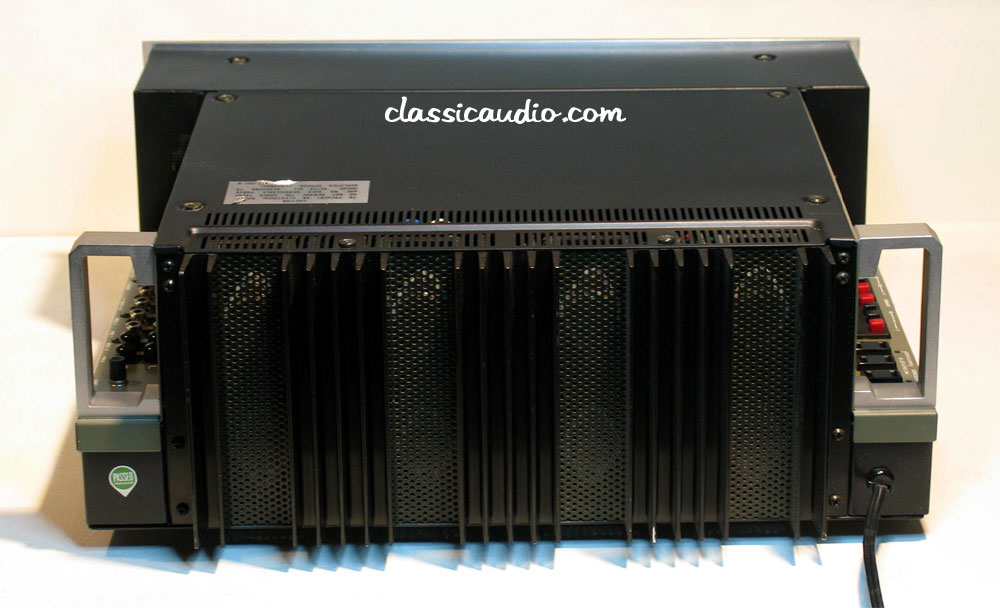

SA-9500

Controls:

Bass Turnover 100Hz/200Hz/400Hzclassicaudio.com
Bass +/- 5
Treble Turnover 2kHz/4kHz/8kHz
Treble +/-5classicaudio.com
Balance
Volumeclassicaudio.com
Function: Mic/Phono2, Phono 1, Tuner, Aux 1, Aux 2

Switches:

Speakers: Off, A, B, A+B, classicaudio.com
Tone: On/Off
Low Filter 15Hz/30Hz
High Filter 12kHz/8kHz
Mode: Rev, Norm, L+R, L, Rclassicaudio.com
Muting: 0, -15dB, -30dBclassicaudio.com
Tape Monitor: 1, Source, 2
Tape Duplicate
Power

Jacks:

Headphones
Mic

Indicators:

Powerclassicaudio.com

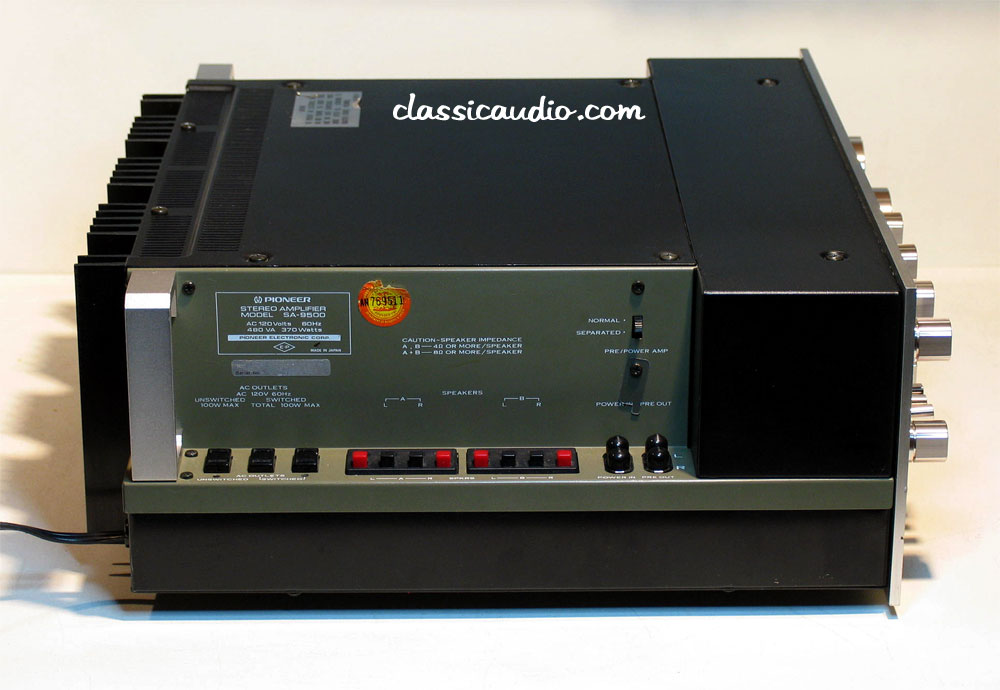

Left Panel:

AC Outlet Unswitched
AC Outlet Switched (2)
Main In (L, R)
Pre Out (L, R)
Pre/Power Amp: Normal/Separated
Speakers A (L, R)
Speakers B (L, R)classicaudio.com

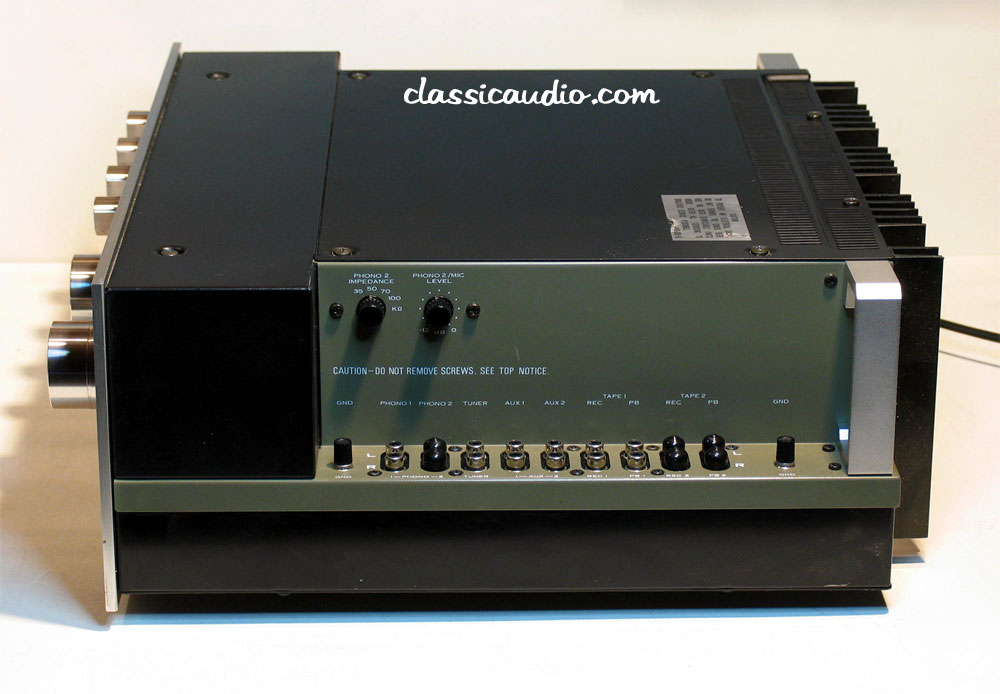

Right Panel:

Tape Monitor 1 Out (L, R)
Tape Monitor 1 In (L, R)classicaudio.com
Tape Monitor 2 Out (L, R)
Tape Monitor 2 In (L, R)
Aux 1 Input (L, R)classicaudio.com
Aux 2 Input (L, R)classicaudio.com
Phono 1 Input (L, R).
Phono 2 Input (L, R)
Phono 2 Impedance Selector
Phono 2/Mic Level

Shipping Weight 45 lbs.

$1700.00

ClassicAudio.com
Phone 916-488-6016 or
To send email click here.

Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We PRO PACK!

This item includes our 60 day / 2 year limited warranty!
