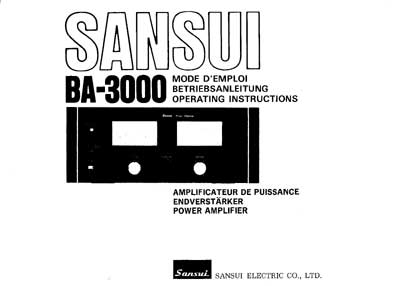

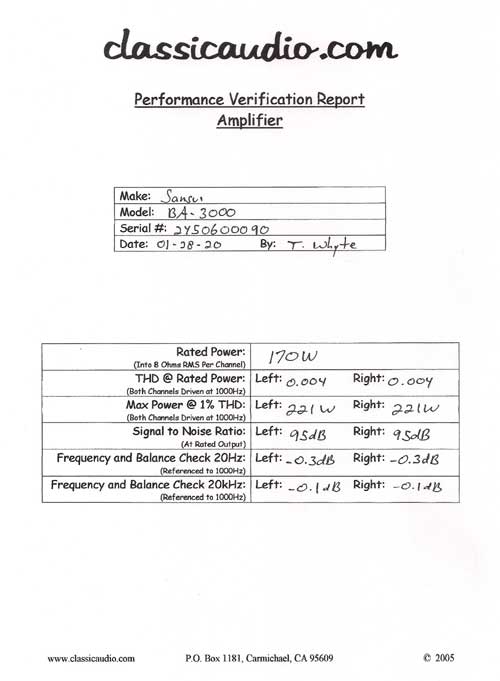

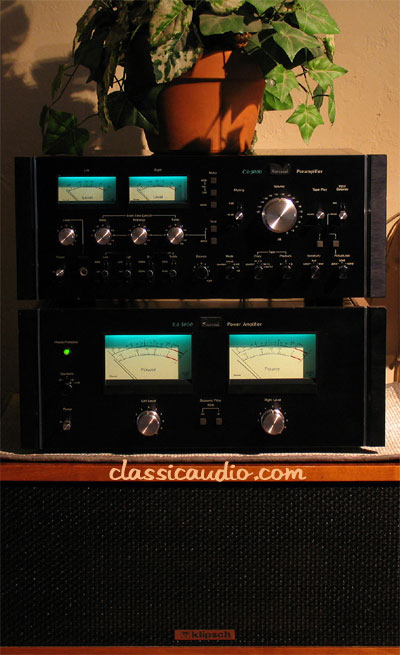

Sansui model CA-3000 preamplifier and model BA-3000 power amplifier. Both are in very good condition. One owner pieces. These units have been serviced and fully tested. Our original Performance Verification Report is provided for each piece as well as a copy of the owner's manual.
Sansui on the CA-3000:
Our finest control stereo preamplifier. Contemporary disc recordings which feature extremely wide dynamic range make strenuous demands on all links in the reproduction chain, especially in the pre and power amplification stages. Dynamic range and other critical high fidelity parameters, such as a wide frequency response, low distortion and the ability to handle all musical signals without clipping and without an increase in noise, must be applied to any preamplifier if one is to accurately judge its quality. Add to these the control versatility needed in a complex component set-up, and the power stability required for dependable performance and you have described the CA-3000.
Sansui on the BA-3000:
The Sansui BA-3000 has all the design features of the BA-5000, but with a power output of 170 watts per channel, minimum RMS, both channels driven into 8 ohms over a 20 to 20,000Hz bandwidth, with no more than 0.05 % total harmonic distortion; 340 watts, minimum RMS in mono.
Features include:
Four jumbo heat sinks coupled directly to the power transistors eliminate the need for a cooling fan. LED Power/Protector indicator on front panel glows red when power is switched on, turns green to indicate safe operation; turns red to warn of potentially harmful conditions. BA-3000 has all the safety features, subsonic filters and distortion-free toroidal coil winding power transformer.
Sold as a set only.
 |
Controls:
Phones Levelclassicaudio.com
Treble: +/- 10
Midrange: +/- 5classicaudio.com
Bass: +/- 10
Volume: Log dB Scaleclassicaudio.com
Balance
Mode: Reverse, Normal, L+R, L, Rclassicaudio.com
Tape Playback: 1, 2, 3
Copy: Source, 1>2-3, 2>1-3, 3>1-2classicaudio.com
Sensitivity (Phono 1 and 2): 1.5 mV, 3 mV, 6 mV
Pickup Load (Phono 1): 30Kohm, 50Kohm, 100Kohmclassicaudio.comSwitches:
Powerclassicaudio.com
Low Filter: 40Hz, Off, 20Hz
Hi Filter: 7kHz, Off, 12kHzclassicaudio.com
Treble: 2kHz, 4kHz, 8kHz
Bass: 400Hz, 200Hz, 100Hzclassicaudio.com
Meter Input 40dB
Meter Input 0dBclassicaudio.com
Meter Output
Tone Inclassicaudio.com
Tone Defeat
Muting: 0, -10dB, -30dBclassicaudio.com
Tape Play: Source, Playback
Input Selector: Aux, Phono, Tunerclassicaudio.com
Phono 1
Phono 2classicaudio.comJacks:
Headphonesclassicaudio.com
Indicators:
Power LEDclassicaudio.com
Left Level Meter: -50dB to +5dB
Right Level Meter: -50dB to +5dBclassicaudio.com

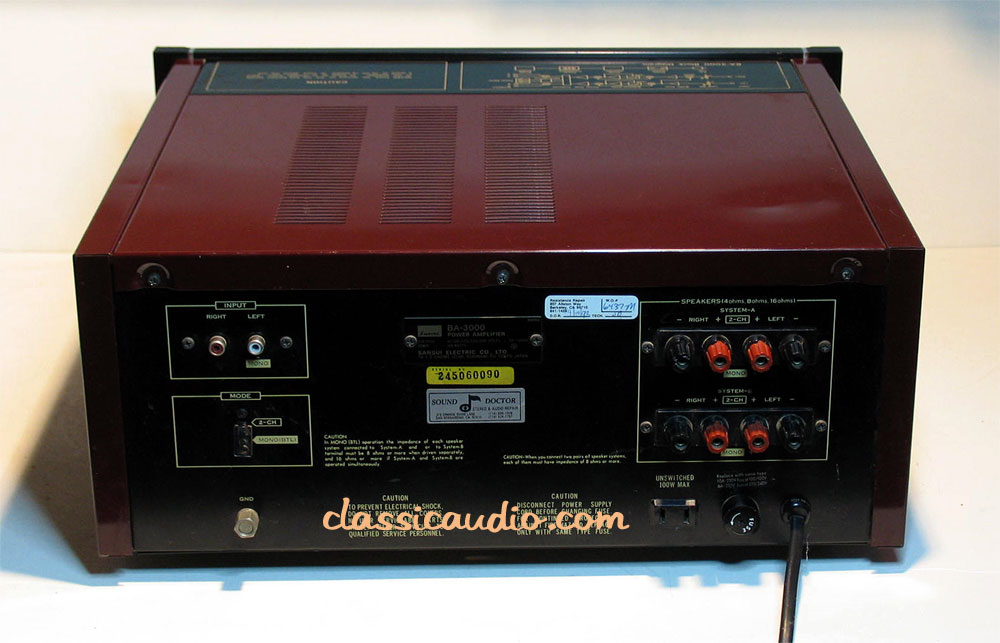

Rear Panel:
Input Capacitance (Phono 1 and 2): 10pF, 100pF, 200pFclassicaudio.com
Tape 2 Record/Play (DIN)
AC Outlet Unswitched (4)classicaudio.com
AC Outlet Switched (3)
Phono 1 (L, R)classicaudio.com
Phono 2 (L, R)
Tape 1 Play (L, R)classicaudio.com
Tape 1 Record (L, R)
Tape 2 Play (L, R)classicaudio.com
Tape 2 Record (L, R)
Tape 3 Play (L, R)classicaudio.com
Tape 3 Record (L, R)
Tuner (L, R)classicaudio.com
Aux (L, R)
Output 1 (L, R)classicaudio.com
Output 2 (L, R)classicaudio.com
Shipping Weight: 35 lbs. 21 x 21 x 13

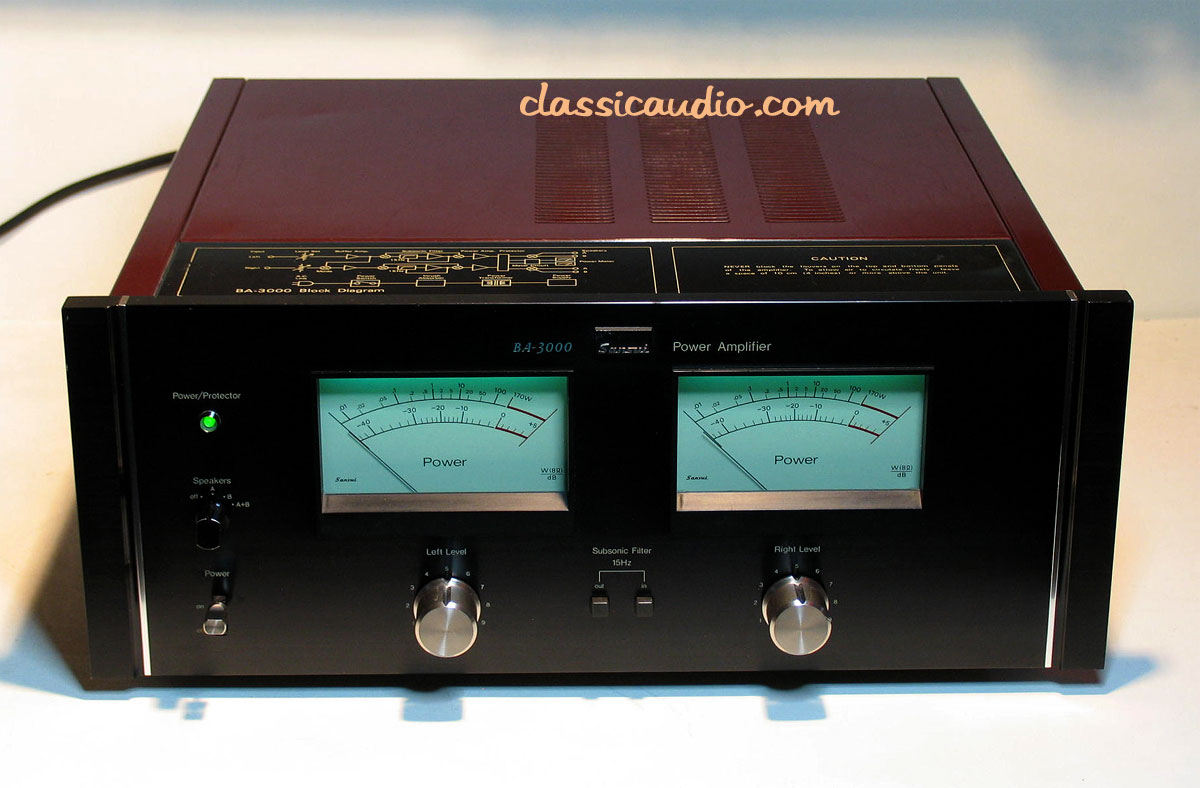

Sansui BA-3000 Controls:
Left Level
Right LevelSwitches:
Power
Subsonic Filter: In/Out
Speakers: Off, A, B, A+BIndicators:
Power Meter Left Channel
Power Meter Right Channel
Power/ProtectRear Panel:
Input: Left, Right
Mode: 2-CH, Mono (BTL)
Speakers A
Speakers B
AC Outlet (Unswitched)Shipping Weight 60 lbs. 25 x 21 x 13
 |
$6000.00
 |
ClassicAudio.com
Phone 916-488-6016 or
Send email click here.
 |
Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We PRO PACK!
This item includes our 60 day / 2 year limited warranty!
Read what our customers say about us!
 |
 |
 |
 |
