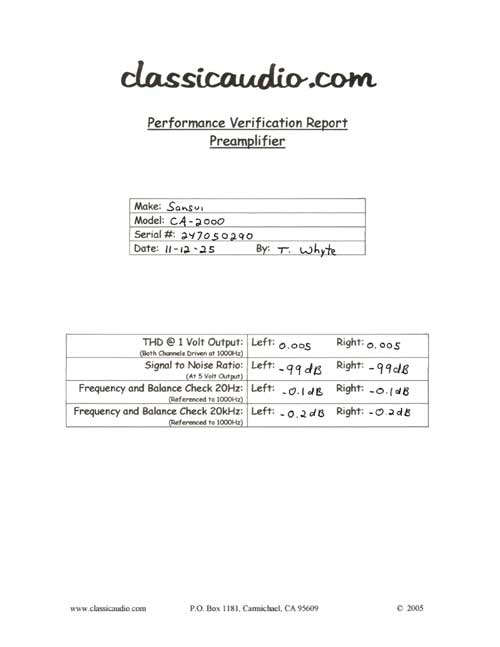

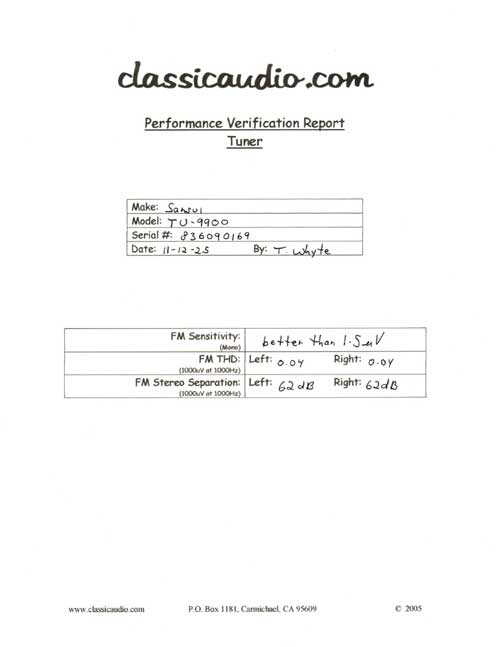

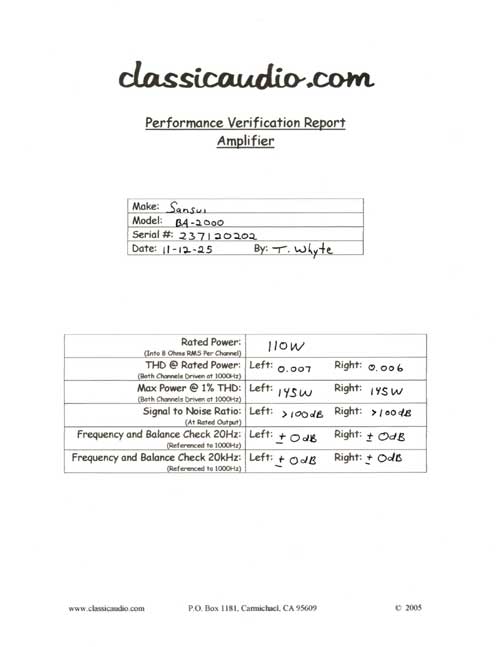

Sansui model TU-9900 AM/FM Stereo tuner, model CA-2000 preamplifier and model BA-2000 power amplifier. All are in excellent condition. These units have been serviced and fully tested. Our original Performance Verification Report is provided for each piece.

The Sansui model TU-9900 is Sansui's flagship analog tuner. It's performance is rarely approached. It features very low distortion, very high sensitivity and a narrow IF mode for superb selectivity.

The Sansui model CA-2000 is a full featured high performance control preamplifier. It features dual phono inputs, one with adjustable loading. Side I/O locations make for easy cable management.

The Sansui model BA-2000 power amplifier is rated at 110 watts RMS per channel into 8 or 4 ohms.

Also Included with this Item:

TU-9900 Original Operating Instructions
CA-2000 Original Operating Instructions
BA-2000 Original Operating Instructions
Original BA/CA2000 8 Page Color Product Brochure



From Sansui:

The TU-9900 is designed to match the superb performance of Sansui's other fine components.
It features 3 dual-gate MOS FET, switchable sensitivity, signal generator and a low pass filter.

The CA-2000 stereo preamplifier is for the purist who likes to be in control.
A full set of controls makes the most of the musical qualities, along with a flat response over 10Hz to 80kHz with less than 0.03% THD.

The BA-2000 is a power amplifier made to complement the CA-2000 preamplifier.
The unit features a toroidal power transformer, dual transistor differential amplifier with constant current power supply and 2 transistor current mirror circuit.



Sold as a set only.

---

---

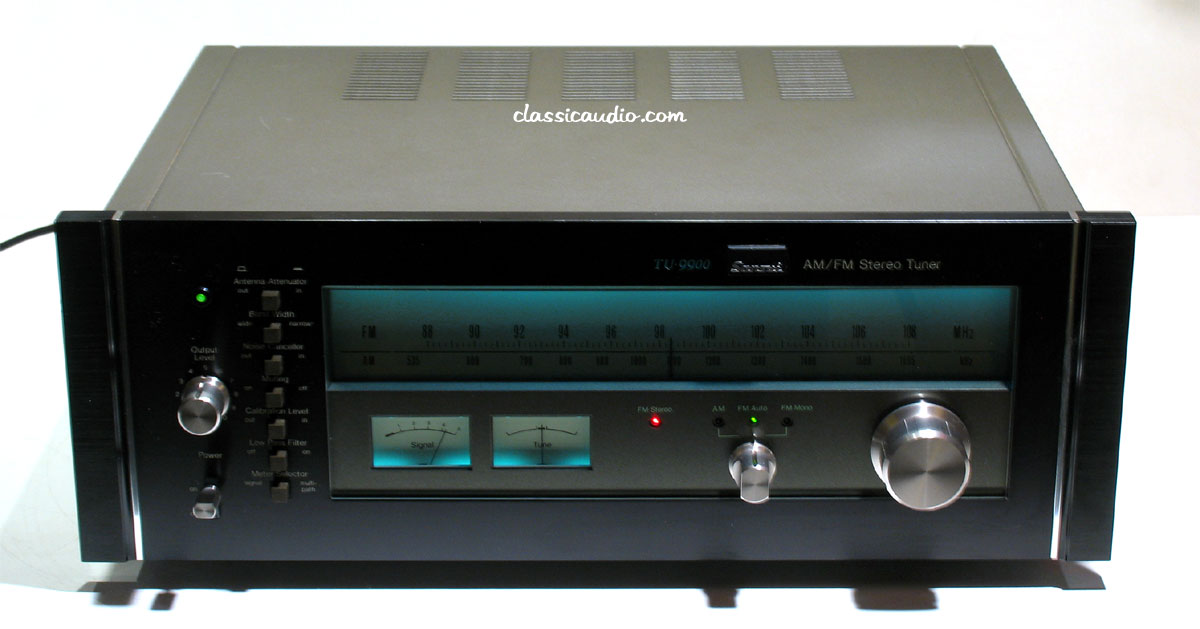

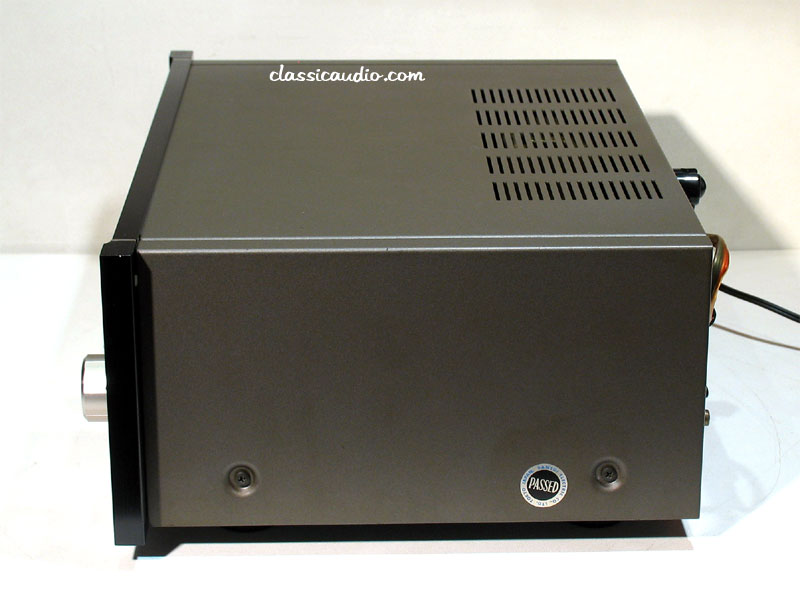

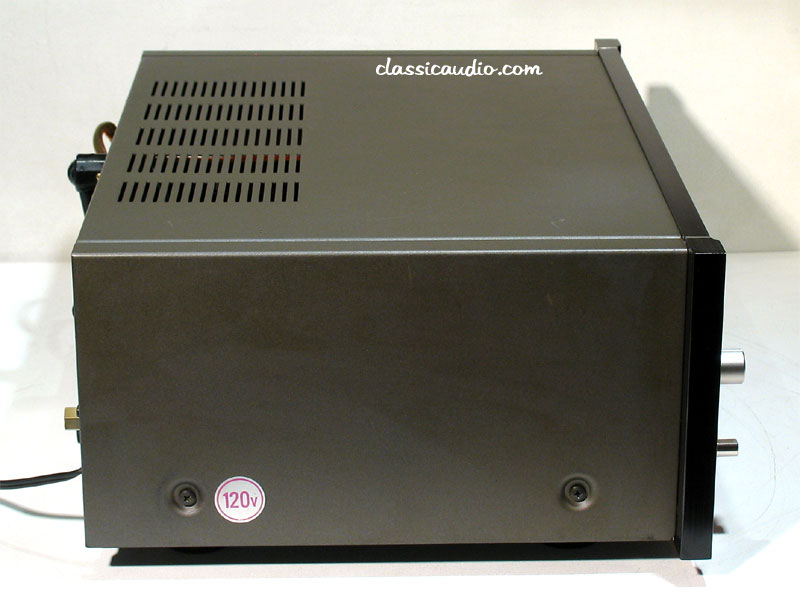

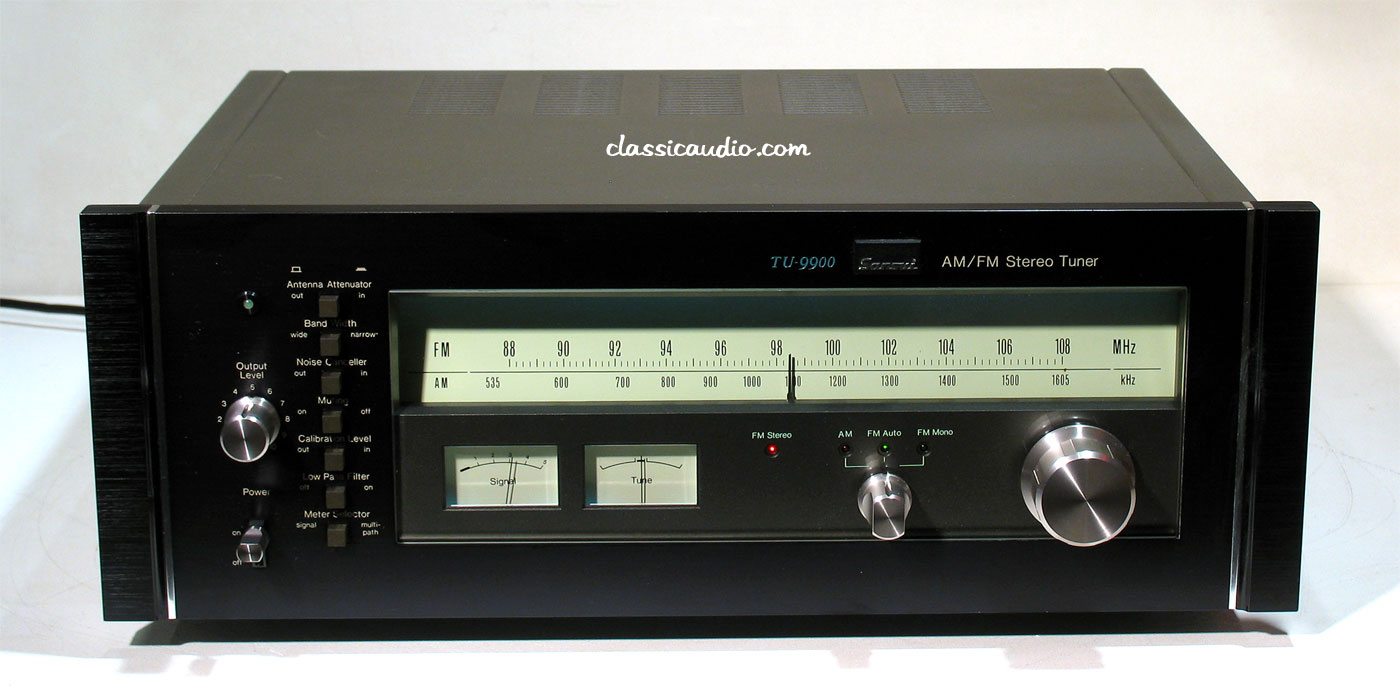

Sansui TU-9900

Controls:

Output Level

Switches:

Power
Antenna Attenuator: On/Off
Bandwidth: Wide/Narrowclassicaudio.com
Noise Canceller: On/Offclassicaudio.com
Muting: On/Off
Calibration Tone: On/Off
Low Pass Filter: On/Off
Meter Selector: Signal/Multipath
Selector: FM Auto, FM Mono, AM

Indicators:

FM STEREOclassicaudio.com
FM AUTO
FM MONO
AM
TUNING METER
SIGNAL/MULTIPATH METER

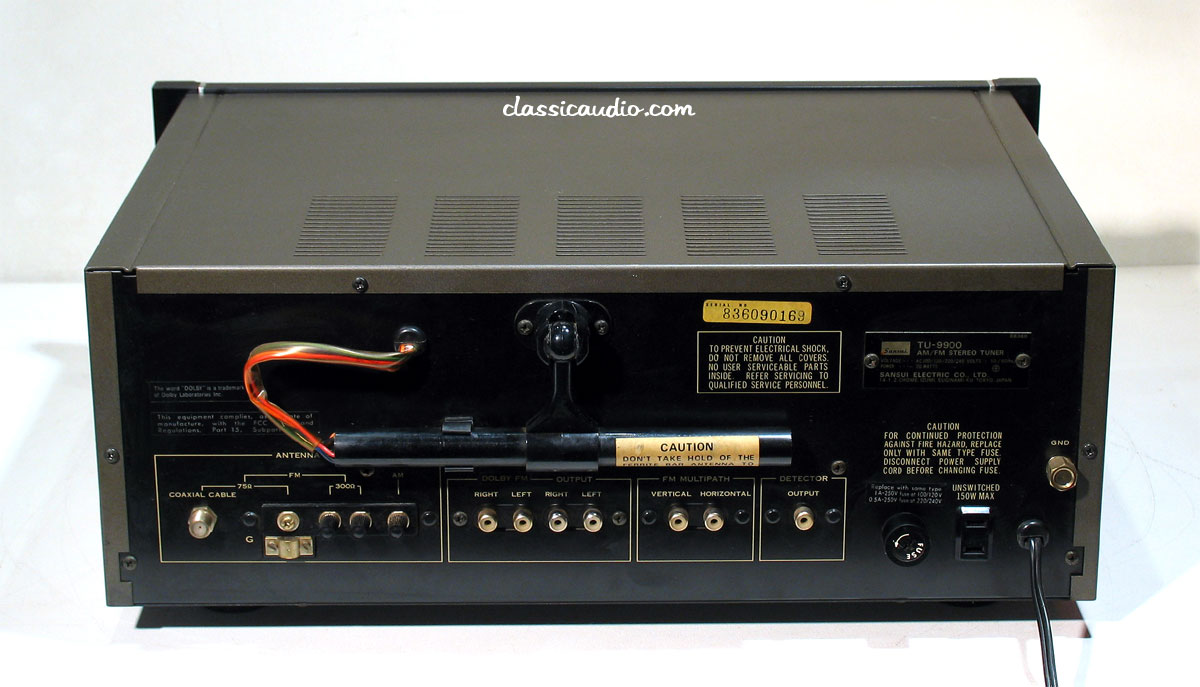

Rear Panel:

Output (L, R)
Dolby FM (L, R)
FM Multipath (H, V)
Detector Output
AC Outlet Unswitched
Antenna: FM 300 Ohm, FM 75 Ohm, FM Coaxial, AMclassicaudio.com

Shipping Weight 30 lbs. 21 x 21 x 13

---

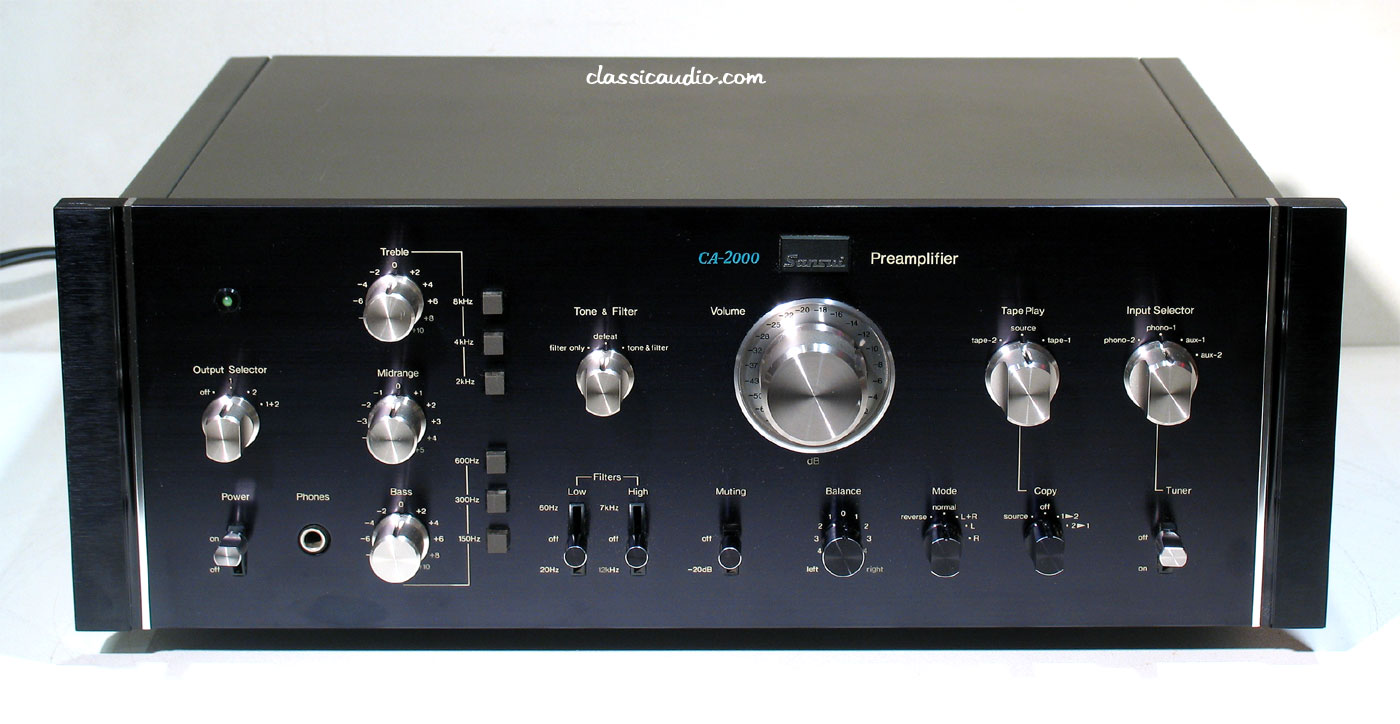

Sansui CA-2000

Controls:

Output Selector: Off, 1, 2, 1+2classicaudio.com
Treble: +/- 10
Midrange: +/- 5classicaudio.com
Bass: +/- 10
Tone & Filter: Filter Only, Defeat, Tone & Filterclassicaudio.com
Volume: Log dB Scale
Balanceclassicaudio.com
Mode: Reverse, Normal, L+R, L, R
Tape Play: Tape-2, Source, Tape-1classicaudio.com
Copy: Source, Off, 1>2, 2>1
Input Selector: Phono 2, Phono 1, Aux-1, Aux-2classicaudio.com

Switches:

Powerclassicaudio.com
Treble 8kHz
Treble 4kHzclassicaudio.com
Treble 2kHz
Bass 600Hzclassicaudio.com
Bass 300Hz
Bass 150Hzclassicaudio.com
Low Filter: 60Hz, Off, 20Hz
Hi Filter: 7kHz, Off, 12kHzclassicaudio.com
Muting: Off, -20dB
Tuner: Off, Onclassicaudio.com

Jacks:

Headphonesclassicaudio.com

Indicators:

Power LEDclassicaudio.com

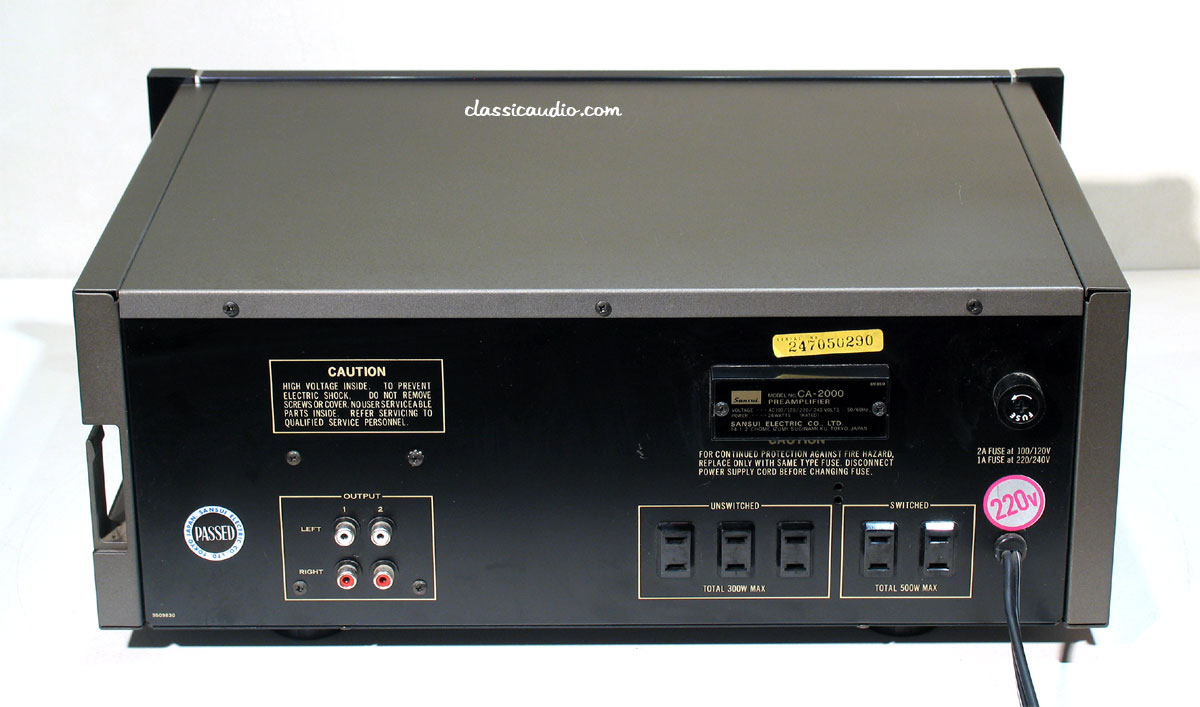

Rear Panel:

Output 1 (L, R)classicaudio.com
Output 2 (L, R)
AC Outlet Unswitched (3)classicaudio.com
AC Outlet Switched (2)

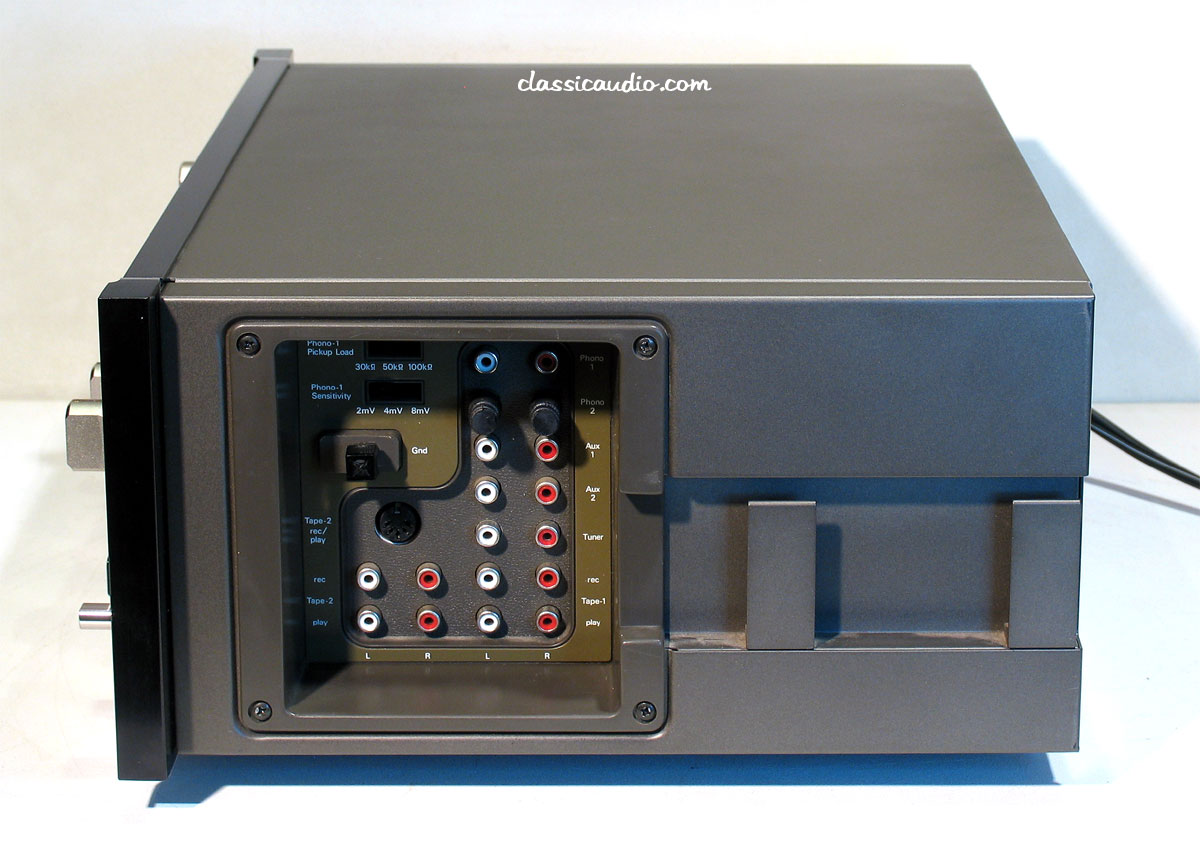

Side Panel:

Phono 1 Pickup Load: 30Kohm, 50Kohm, 100Kohm
Phono 1 Sensitivity: 2mV, 4mV, 8mVclassicaudio.com
Tape 2 Rec/Play (DIN)
Tape 2 Record (L, R)classicaudio.com
Tape 2 Play (L, R)
Phono 1 (L, R)classicaudio.com
Phono 2 (L, R)
Aux 1 (L, R)classicaudio.com
Aux 2 (L, R)
Tuner (L, R)classicaudio.com
Tape 1 Record (L, R)
Tape 1 Play (L, R)

Shipping Weight 30 lbs. 21 x 21 x 13

---

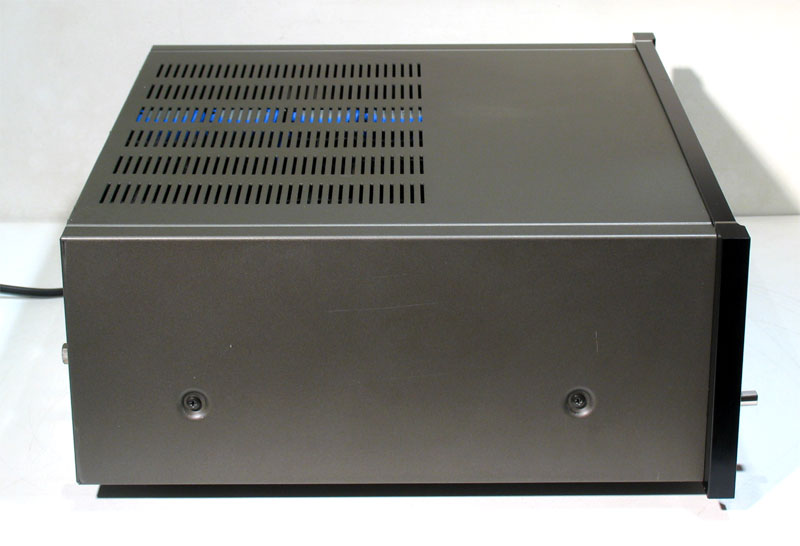

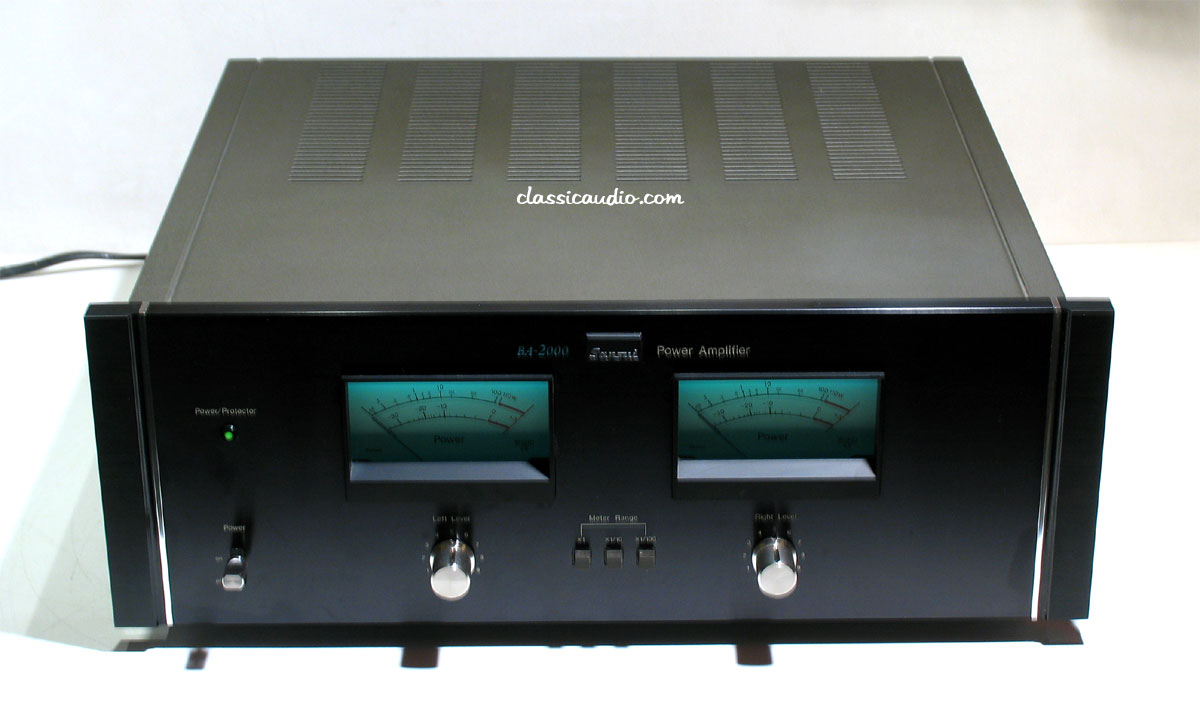

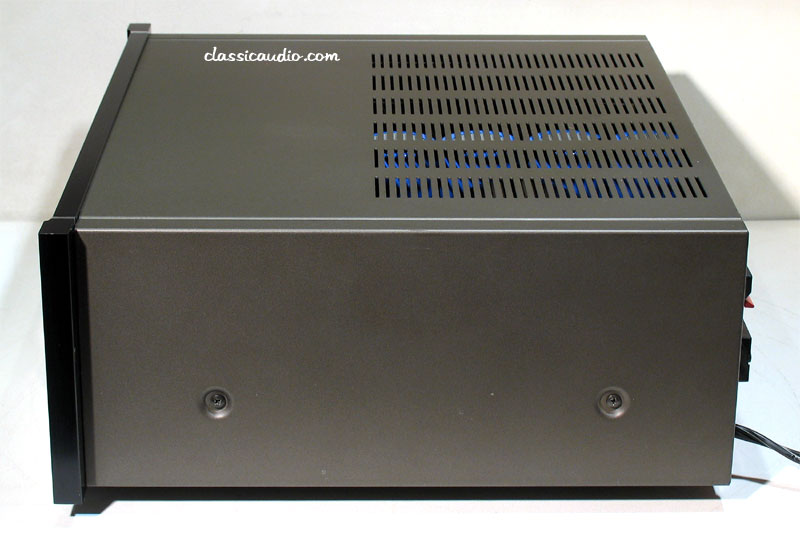

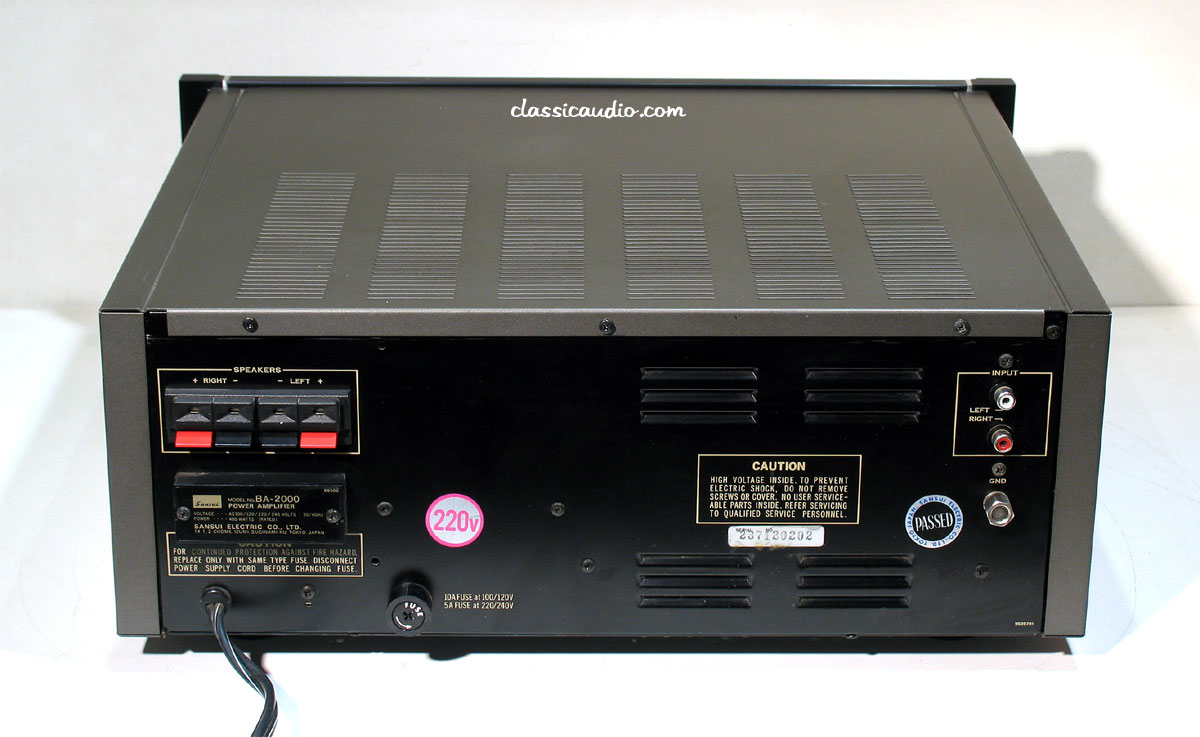

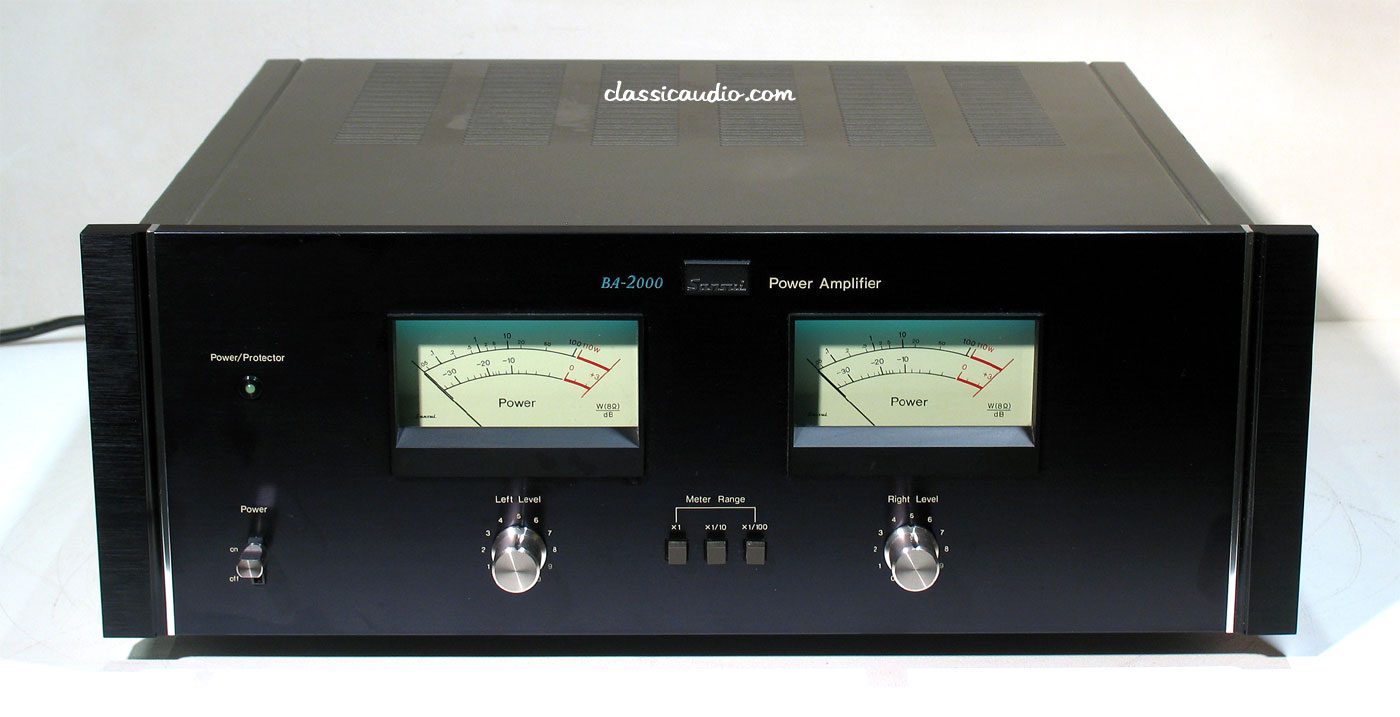

Sansui BA-2000

Controls:

Left Level
Right Level

Switches:

Power
Meter Range: X 1, X 1/10, X 1/100

Indicators:

Power Meter Left Channel
Power Meter Right Channel
Power/Protect

Shipping Weight 50 lbs. 25 x 21 x 13



$5000.00



ClassicAudio.com
Phone 916-488-6016 or
Send email click here.



Buyer to pay item purchase price plus shipping charges from 95609.
Shipping charges will depend on the item purchased and delivery destination.
Please contact classicaudio.com for a shipping charge quote.
Shipping to the U.S. only.
We PRO PACK!

This item includes our 1 year limited warranty!

Read what our customers say about us!

---

---

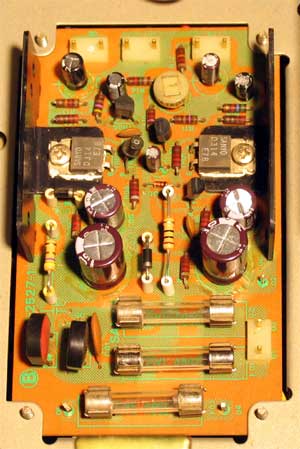

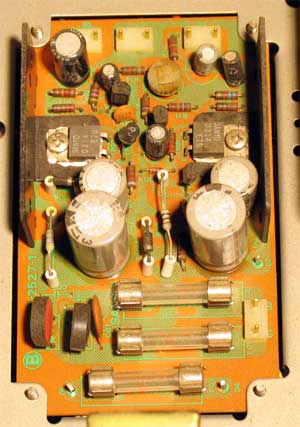

TU-9900 Regulated Power Supply Refurb:

All electrolytic capacitors replaced.
Corrosive glue residue removed and any compromised components replaced.
All fusistors replaced with low tolerance precision carbon film resistors.
Regulated voltage adjusted to factory spec.

BEFORE

AFTER

TU-9900 Discriminator Circuit Board Refurb:

All electrolytic capacitors replaced.
All fusistors replaced with low tolerance precision carbon film resistors.
Precision adjustment of the discriminator coils.

TU-9900 AM IF Circuit Board Refurb:

All electrolytic capacitors replaced.
Circuit adjusted and aligned.

TU-9900 MPX Noise Amp Circuit Board Refurb:

All electrolytic capacitors replaced.

TU-9900 FM MPX Circuit Board Refurb:

All electrolytic capacitors replaced.
Precision alignment of the FM MPX section.

Dial lamps converted to LEDs.

---

CA-2000 Regulated Power Supply Refurb:

All electrolytic capacitors replaced.
Corrosive glue residue removed and any compromised components replaced.

BEFORE

AFTER

CA-2000 Phono Section Refurb:

All electrolytic capacitors replaced.
All fusistors replaced with low tolerance precision carbon film resistors.
Confirmation of adherence to the RIAA equalization standard.

CA-2000 Headphone Amplifier Circuit Board Refurb:

All electrolytic capacitors replaced.

CA-2000 Bass and Treble Tone Control Circuit Board Refurb:

All electrolytic capacitors replaced.

CA-2000 Volume Control Circuit Board Refurb:

All electrolytic capacitors replaced.

---

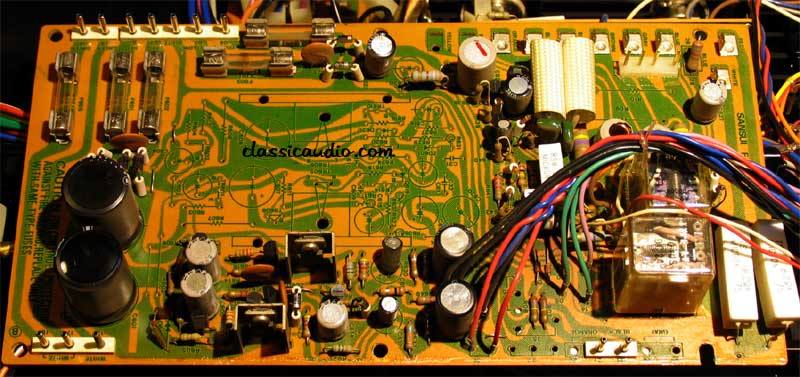

BA-2000 Power Supply Refurb:

All electrolytic capacitors replaced.
Corrosive glue residue removed and any compromised components replaced.
All fusistors replaced with low tolerance precision carbon film resistors.

BEFORE

AFTER

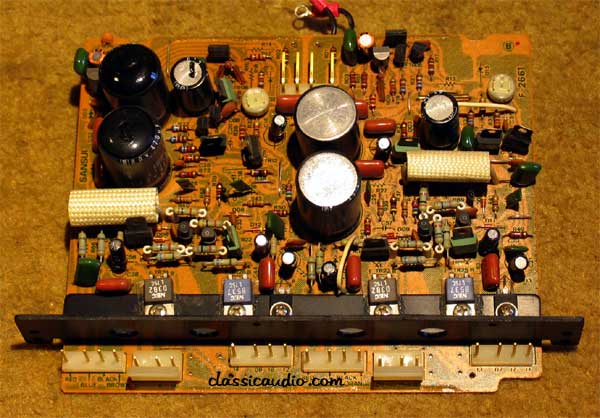

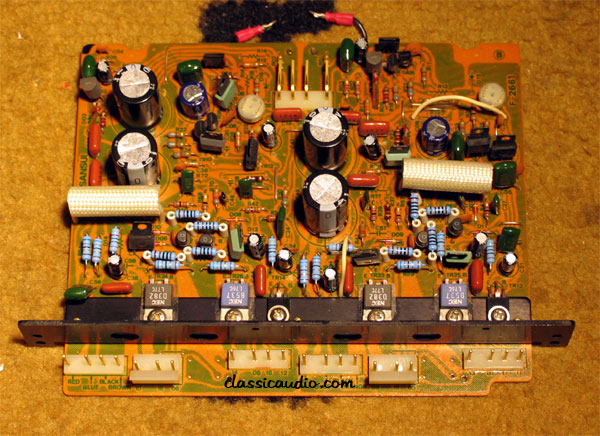

BA-2000 Driver Board Refurb:

All electrolytic capacitors replaced.
Corrosive glue residue removed and any compromised components replaced.
All fusistors replaced with low tolerance precision carbon film resistors.

BEFORE

AFTER

BA-2000 Volume and Meter Circuit Board Refurb:

All electrolytic capacitors replaced.
All fusistors replaced with low tolerance precision carbon film resistors.
Power meters calibrated and mechanical zero adjusted as needed.

BA-2000 Fianl Stage Circuit Board Refurb:

All fusistors replaced with low tolerance precision carbon film resistors.
Hardware tightened.

The four main power supply capacitors upgraded from 12,000uF to new Nichicon 15,000uF.

The meter illumination is changed to LEDs while maintaining the classic "Sansui Bluie" color.
